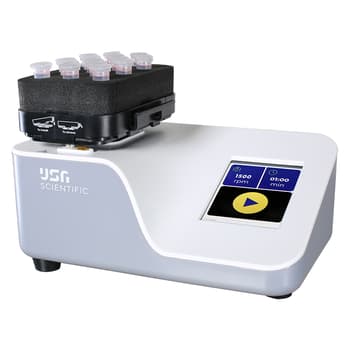

The Vortex Mixer

A compact mixer and vortexer in one! Touch a tube to the standard adapter for quick vortexing or set specific speed and duration to mix plates and tubes.

Price

$15.00 $489.00 $489.00 $395.00
For a limited time, purchase the Vortex Mixer and receive the tube adapter and microplate adapters included!  Select the option for "Adapters Included". No need to add the adapters separately. Offer valid through January 31, 2025.
  • Easy to program touchscreen, even with gloves
  • Quick touch mode
  • Increase yields with precise duration and speed controls

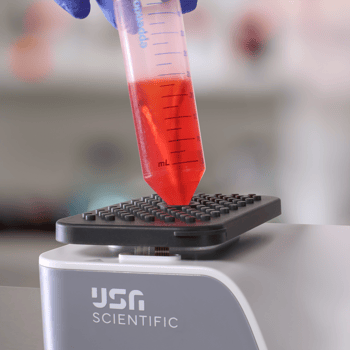

The Vortex Mixer is ideally suited for assay protocols that require gentle mixing up to resuspensions that require vigorous vortexing. All protocols are easily controlled by the digital touchscreen. It is supplied with a standard rubber mat attachment. The standard attachment is used for mixing a single tube to 3,500 rpm. It can be used in touch mode by applying pressure to center cup on the base plate or in program mode via the touch screen. In both modes the timer will count how long the program is active eliminating the need for an additional timer on the bench. The operation can be controlled at preset or selected speed and duration via the touch screens. Adapters can be purchased separately.
See Care tab for specifications.

Technical Specs & User Manual

Technical Specs & User Manual

Max Speed Standard Attachment: 300 to 3,500 rpm
Adapter for 1.5/2.0 ml: 300 to 1,500 rpm
Adapter for microplates: 300 to 1,500 rpm
Noise level ≤55 dBA
Power adapter operating voltage 100 to 240 V~, 50 to 60 Hz
Unit input 24 VDC 12 W
Weight ≤2.8 kg (6.2 lbs.)
Dimensions (W×D×H) 200 × 130 × 103 mm (7.9” x 5.2” x 4.1”)
Ambient temperature for operation 2° to 40°C (36°-104°F)
Relative humidity for operation ≤80%
USB Output 5 VDC 1 A
Warranty 2 Years
